Description

Toggle Switch Cup with one opening

Choose from 20 gauge zinc plated steel, aluminum, or sturdy black plastic (different clearances)

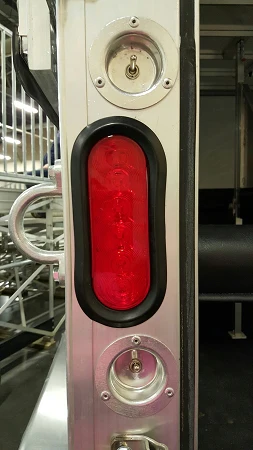

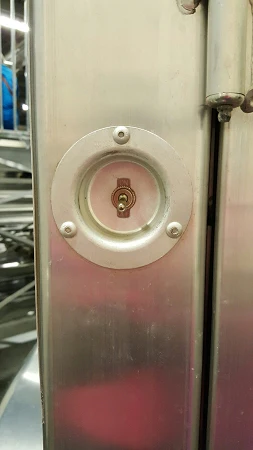

The traditional 20 gauge zinc-plated steel AND the aluminum switch cup fit in a one inch deep,  2 1/8″ – 2 1/4″ diameter hole, protecting the toggle switch from accidental engagement. You will need 1 1/2″ of clearance in the wall to install these switch cups with our toggle switch, part # TS12VBLADE. Each outer frame is 3 3/8″ diameter. Mount with rivets or three #10 X 1″ screws, sold below or on the Fastener page.

The sturdy black plastic switch cup requires the same hole size, but is different, as the cup is 1/8″ deeper & the switch position is arranged so the toggle switch would be placed in the slanted TOP inside the cup, positioned vertically. This allows for LESS clearance inside the wall: You will only need 1 1/8″ clearance If this switch cup is installed with our toggle switch, part# TS12BLADE. The mounting holes & screws are the same as above. Perfect for both steel & aluminum trailers.
